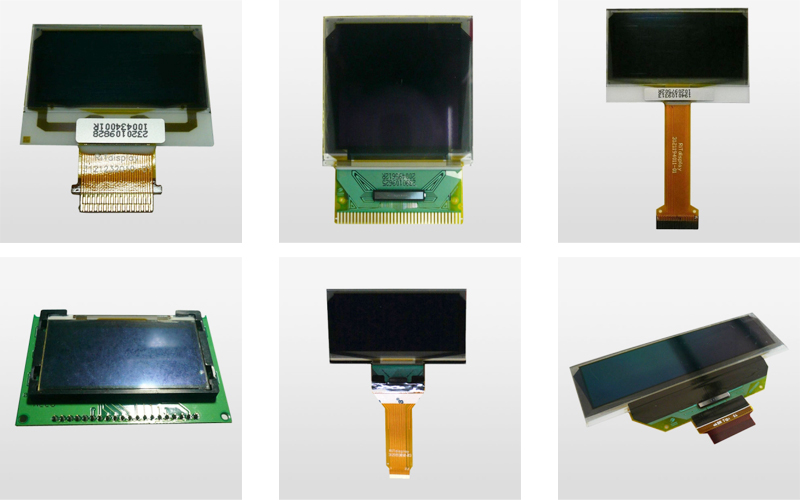

OLED Product







Size	Resolution	OP Temp (℃)	Brightness (nit)	Interface	Remark
0.96"	128 x 64	-40 ~ 70	120 nits	MCU
1.07"	136 x 160	-40 ~ 70	200 nits	MCU	Round
1.27"	128 x 96	-40 ~ 70	100 nits	MCU
1.45"	128 x 128	-40 ~ 70	90 nits	MCU
1.54"	128 x 64	-40 ~ 70	120 nits	MCU
2.08"	256 x 64	-40 ~ 70	150 nits	MCU
2.7"	128 x 64	-40 ~ 70	120 nits	MCU
2.89"	20 x 4	-40 ~ 85	100 nits	MCU
3.12"	256 x 64	-40 ~ 85	80 nits	MCU





Size	Resolution	Color	Type	Interface	Remark
0.49	64 x 32	Light Blue、White	Graphic	4-wire SPI、I2C	COG
0.66	64 x 48	Light Blue、White	Graphic	Parallel、4-wire SPI、I2C	COG
	112 x 88	White	Graphic	4-wire SPI、I2C	COG
0.69	96 x 16	White	Graphic	SPI、I2C	COG
0.75	96 x 96		Graphic		COG
0.82	96 x 39	Light Blue、White	Graphic	Parallel、4-wire SPI、I2C	COG
0.84	96 x 16	Light Blue、White、Green	Graphic		COG
0.87	128 x 32	Light Blue、White	Graphic	4-wire SPI、I2C	COG
0.91	128 x 32	White	Graphic	4-wire SPI、I2C	COG
0.95	96 x 64	RGB Colors	Full Color Displays	Parallel、4-wire SPI	COG
	96 x 64	White	Graphic	Parallel、4-wire SPI、I2C	COG
0.96	64 x 128	White	Graphic	Parallel、SPI、I2C	COG
	96 x 96	White	Graphic	3- / 4- wire SPI、I2C	COG
	128 x 64 (64 x 128)	Light Blue、Yellow	Graphic	Parallel、SPI、I2C	COG
	128 x 64	Yellow	Graphic	8 bit Parallel、SPI、I2C	COG
	128 x 64 (64 x 128)	White	Graphic	Parallel、SPI、I2C	COG
	128 x 64	Light Blue + Yellow	Area Color	Parallel、3- / 4- wire SPI、I2C	COG
1.04	128 x 32	Light Blue、White	Graphic	Parallel、3- / 4- wire SPI、I2C	COG
1.07	160 x 136	White	Circular Displays	Parallel、3- / 4- wire SPI、I2C	COG
1.10	96 x 96	RGB Colors	Full Color Displays	Parallel、4-wire SPI	COG
1.12	128 x 128	White	Graphic	Parallel、4-wire SPI、I2C	COG
1.27	128 x 96	RGB Colors	Full Color Displays	Parallel、3- / 4- wire SPI	COF
1.30	128 x 64	White	Graphic	Parallel、3- / 4- wire SPI、I2C	COG
1.32	128 x 96	White (16 Gray Scales)	Graphic	4-wire SPI	COG
	128 x 96	White	In-Cell Touch	SPI、I2C	COG
1.36	128 x 16	White	Flexible Displays	SPI、I2C	COG
1.45	160 x 128	RGB Colors	Full Color Displays	Parallel、4-wire SPI	COF
1.50	128 x 128	RGB Colors	Full Color Displays	Parallel、3- / 4- wire SPI	COF
1.51	128 x 56	Light Blue	Transparent Displays	SPI、I2C	COG
1.54	128 x 64	Light Blue、White、Yellow	Graphic	Parallel、4-wire SPI、I2C	COG
1.69	160 x 128	RGB Colors	Full Color Displays	Parallel、4-wire SPI	COF
1.71	128 x 32	White、Orange	Graphic	3- / 4- wire SPI、I2C	COG
1.81	160 x 32	White	Flexible Displays	3-wire SPI、I2C	COG
2.08	256 x 64	Light Blue、White (16 Gray Scales)	Graphic	Parallel、SPI、I2C	COG
2.23	128 x 32	Light Blue、Yellow、White	Graphic	Parallel、4-wire SPI、I2C	COG
2.26	16 x 2	Yellow、White	Character	Parallel、SPI、I2C	COG
2.42	128 x 64	Light Blue、White、Yellow、Green	Graphic	Parallel、4-wire SPI、I2C	COG
2.70	128 x 64	White、Yellow、Green (16 Gray Scales)	Graphic	Parallel、3- / 4- wire SPI	COG
2.8	256 x 64	Light Blue、Yellow、White (16 Gray Scales)	Graphic		COF
2.89	20 x 4	Yellow、White	Character	Parallel、SPI、I2C	COG
2.92	20 x 2	Yellow、White	Character	Parallel、SPI、I2C	COG
2.93	20 x 2	Light Blue、Yellow、White、Green	Character
3.12	256 x 64	Light Blue、Yellow、White、Green (16 Gray Scales)	Graphic	Parallel、3- / 4- wire SPI	COF
3.67	16 x 2	Light Blue、Yellow、White、Red、Green	Character	Parallel、SPI、I2C	COG
4.1	230 Icons	Red + Orange + Green + Blue	Transparent Displays	I2C	COG
5.50	256 x 64	Yellow、Green (16 Gray Scales)	Graphic	Parallel、3- / 4- wire SPI	COF
5.8	40 x 2	Yellow、White	Character	Parallel、SPI、I2C	COG





---
